Automgen +Automsim- 1 licenza

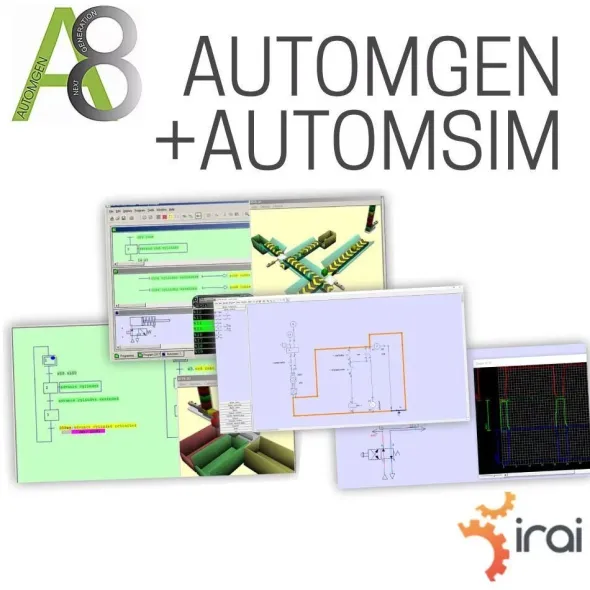

Automgen è la soluzione di riferimento nel campo dei software di automazione universali. Con oltre 30 anni di presenza nel settore, il software si è evoluto nel corso del tempo per sfruttare le più recenti tecnologie disponibili.

Automgen consente di creare programmi con linguaggi standardizzati (IEC 1131-3, SysML), simulare su PC, generare codice per ildownload su PLC e altre periferiche (per esempio Arduino, PIC…). Automgen consente anche la creazione di applicazioni SCADA locali o su Internet e simulazioni 3D.

Il modulo aggiuntivo Automsim (incluso) aggiunge funzionalità per creare diagrammi e simulazioni per le tecnologie elettriche, pneumatiche, idrauliche ed elettroniche digitali.

Automsim è una soluzione dall’uso semplice, dal prezzo accessibile e con una ampia libreria di componenti a cui attingere per la pianificazione dei progetti. Include funzioni di estensione tra cui plotting grafico (stampa funzioni), lista di materiale per calcolo della spesa (distinte base), funzioni di esportazione del disegno in formato EMF (disegno ed esportazione dei diagrammi).

Automsim si integra perfettamente nell’ambiente Automgen per estendere le funzioni di entrambi i software e amplificarne le possibilità di utilizzo.

Caratteristiche di Automgen:
– Programmazione PLC
– SCADA
– Simulazione di processo in ambiente 3D realistico con motore fisico
– Simulazione elettrica, pneumatica, idraulica ed elettronica digitale (con modulo opzionale AUTOMSIM)
– La colorazione della sintassi e la localizzazione automatica degli errori permettono correzioni veloci
– L’organizzazione delle applicazioni in forma di progetto consente di gestirle in modo razionale, indipendentemente dalle loro dimensioni
– Automgen è utilizzato anche nell’industria, rendendolo un prodotto ideale nel settore educativo

Caratteristiche tecniche di Automgen:
– Configurazione consigliata: Microsoft WINDOWS XP, VISTA, 7, 8 o 10, 512 MB di RAM, video 1024 x 768 a 24 bit.
– Linguaggi di programmazione: Ladder, Logico, Diagramma di flusso, Letterale, Blocchi funzione, Grafcet/SFC, CEI 1131-3.
– PLC compatibili o target: SCHNEIDER (PB, SMC, TSX17-10, 17-20, 47, 07, 37, 57, ZELIO, ZELIO2, TWIDO, M340), SIEMENS (S5, S7), ABB (CS31, AC31), KLOCKNER-MOELLER (PS3, PS4, PS414), GE-FANUC (90 Micro, 9030), CEGELEC (C50, C100, 8005, 8035), OMRON (C, CV, CS), MITSUBISHI (FX, Q), FESTO, PANASONIC, LEGO RCX, LINGUAGGIO C, PC (driver I/O disponibili per il controllo I/O – utilizzare un PC come PLC).
– Simulazione 3D: Importazione di file 3D SOLIDWORKS*, 3D STUDIO*, VRML, ecc… Motore fisico TOKAMAK.
– Protezione: codice di convalida o licenza di rete

Componenti integrati in Automsim:

Componenti elettrici:
7 segment display, Coder, Fuse, Heating element, Sound signalling hooter, Thermal relay with safety contact, Voltmeter, Block, 2 positions switch, 3 positons switch, Contact NC, ContactNO,Contact with off delay NC, Contact with off delayNO, Contact with on delay NC, Contact with on delayNO, Contact with on-off delay NC, Contact with on-off delayNO, Disconnecting switch with fuse, Disconnecting switch with switch, Disconnecting switch, Magnetothermal disconnecting switch circuit breaker, Position switch NC, Position switch NO, Power contact NO, Proximity switch NC, Proximity switch NO, Push button NC, Push button NO, Switch NC, Switch NO, Thermal disconnecting switch circuit breaker, Jump, Label, Ac variable speed transmission, Dc variable speed transmission, Motor DC current, Single phase motor,Three phase motor on single phase source 1, Three phase motor on single phase source 2, Three phase motor starting star triangle, Three phase motor with two speed, Three phase motor, Coil latch (reset), Coil latch (set , Coil with double pilot, Coil with off delay, Coil with on and off delay, Coil with on delay, Coil, Light, Solenoid, Common (0 volt), DC power supply, Ground, Power supply 24 volts, Power supply L1,Power supply L2, Power supply L3, Power supply Neutral, Transformer, Magnetic sensor, Proximity sensor

Componenti pneumatici:
Air dryer, Automatic drain coalescing filter, Coalescing filter 1, Coalescing filter 2, Cooler, Differential pressure gauge, Filter and separator, Filter, Gas-loaded accumulator with separator, Gas-loaded accumulator without separator, General accumulator, Indicator 2, Indicator, Lubricator, Manual drain coalescing filter, Manual drain filter, Pressure gauge, Pressure reducer, Silencer, Vaccum generator
,Valve, Motor 1 direction, Motor 2 directions, Rotary actuator, Vacuum cup, Bellow actuator, Brake, Double acting cylinder with sensors, Double acting cylinder, Single acting cylinder spring exit with sensors ,Single acting cylinder spring exit, Single acting cylinder spring return with sensors, Single acting cylinder spring return, CylindersSmall, CylindersBrakeDouble acting cylinder, CylindersBrakeSingle acting cylinder spring exit, CylindersBrakeSingle acting cylinder spring return, CylindersLongDouble acting cylinder, CylindersLongSingle acting cylinder spring exit, CylindersLongSingle acting cylinder spring return, CylindersSmallDouble acting cylinder, CylindersSmallSingle acting cylinder spring exit, CylindersSmallSingle acting cylinder spring return, Directional valves 2/2, Directional valves 3/2, Directional valves 3/3, Directional valves 4/2, Directional valves 4/3, Directional valves 5/2, Directional valves 5/3, Check valve, Pilot to close check valve, Pilot to open check valve, Quick exhaust valve, Throttle one-way ,Throttle, Variable throttle, Compressor, Exhaust, Plug, Pressure source, CompressorCompressor with three phase motor, CompressorCompressor, Jump, Label, AND, Counter, INH, NAND, NOR, NOT (2 inputs), NOT, OR, YES (2 inputs), YES, Conditioning unit with lubricator, Conditioning unit, Piloted pressure regulator, Piloted pressure relief valve, Pressure regulator, Pressure relief valve, Sequence valve, Variable pressure regulator, Variable pressure relief valve, Variable sequence valve, push button NO, push button with detent NC, push button with detent NO, push button NC,, Not threshold sensor, Pressure sensor ,SequencersEntrymodule, SequencersExit module, SequencersMemory with reset activation, SequencersMemory with set priority, SequencersStep module, Timer with negative output, Timer with positive output.

Oleodinamica:
Accumulator, Air cooler, Air filter, Cooler with thermal switch, Cooler-heater with thermal switch, Cooler-heater, Cooler, Differential pressure gauge, Filter, Fluid cooler with thermal switch, Fluid cooler, Gasloaded
accumulator without separator, Heater, Indicator, Lubrificator, Pressure gauge, Pressure indicator, Spring-loaded accumulator, Valve, Weight-loaded accumulator, Cylinders, Motor 1 direction Motor 2 directions, Rotary cylinder, CylindersBrake, CylindersDouble acting cylinder, CylindersLong, CylindersSingle acting cylinder with spring exit, CylindersSmall, CylindersSpring acting cylinder withspring return, CylindersBrakeDouble acting cylinder, CylindersBrakeSingle acting cylinder spring exit, CylindersBrakeSingle acting cylinder spring return, CylindersLongDouble acting cylinder ,CylindersLongSingle acting cylinder spring exit, CylindersLongSingle acting cylinder spring return, CylindersSmallDouble acting cylinder, CylindersSmallSingle acting cylinder spring exit ,CylindersSmallSingle acting cylinder spring return, Directional valves 2/2, Directional valves 3/2, Directional valves 3/3, Directional valves 4/2, Directional valves 4/3, Directional valves 5/2, Directional valves 5/3, Check valve, Parachute valve, Pilot operated check valve, Pilot to close check valve, Spring loaded check valve, Throttle valve, Variable throttle valve, Plug, Pressure source, Reservoir, Jump, Label ,Counterbalance valve, Piloted counterbalance valve, Piloted pressure reducing valve, Piloted pressure relief valve, Pressure reducing valve, Pressure relief valve, Sequence valve, Variable counterbalance alve, Variable pressure reducing valve, Variable pressure relief valve, Variable sequence valve, Pressure sensor

Elettronica digitale:
Power sources, 3 to 8 coder, 4 bits comparator, 7 segment decodeur, 8 to 3 coder, BCD decoder, 4 bit asynchronous counter, Down counter, Up counter, Digital voltmeter, Logical probe, Flip-flop D, Flip-flop Jk, Flip-flop Jkt, Flip-flop SR, Flip-flop Srt, Flip-flop T, Logical gates And, Logical gates Nand, Logical gates No, Logical gates Nor, Logical gatesOr, Logical gates Yes, Clock, Sequencer,Common(0 volt), Positive
power
