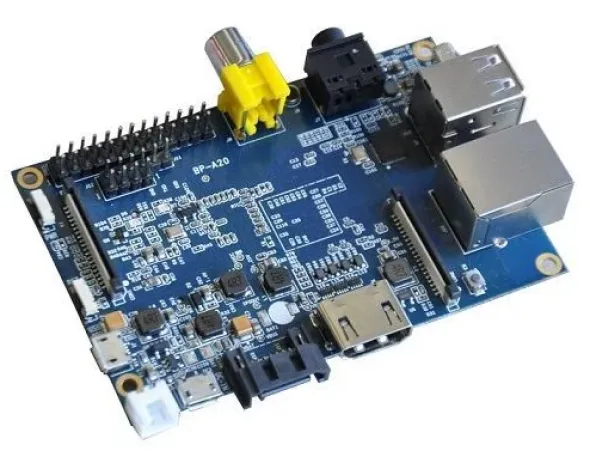

Banana Pi Board

Banana PI is an Open Source hardware platform which was produced to run the Elastos.org open source OS among others. Banana PI a dual core, Android 4.2 product which is much better than the Raspberry Pi.
The Banana Pi hardware runs Android, Debian Linux, Ubuntu Linux, OpenSuse linux and images that run on the Raspberry Pi and Cubieboard.
Banana PI has a Gigabit Ethernet port and a SATA Socket. It can run with Android 4.2.2 smoothly. The size of Banana PI M1 is about the same size as a credit card,
It can easily run games as it supports 1080P high definition video output. The GPIO is compatible with Raspberry Pi and can run Raspberry Pi images directly.

CPU: A20 ARM Cortex-A7 Dual-Core da 1 GHz di clock
GPU: ARM Mali400MP2 compatibile con OpenGL ES 2.0/1.1
Memoria SDRAM: 1 GB DDR3 condivisa con la GPU
Memorie di massa: SD Card Max.64 GB; Slot SATA per dischi fino a 2 TB
Network: 10/100/1000 Ethernet RJ45 (USB WIFI Dongle optional)
Camera Input: Slot CSI modulo video camera (richiede una videocamera compatibile)
Ingresso: Microfono
Uscite Video: HDMI, CVBS, LVDS/RGB
Uscita Audio: Jack 3,5 mm e HDMI
Alimentazione: 5 volt attraverso connettore Micro USB (DC In Only) e/o MicroUSB (OTG)
Porte USB 2.0: 2 collegate direttamente al chip Allwinner A20
Pulsanti:
– Reset vicino al connettore MicroUSB
– Alimentazione vicino al pulsante Reset
– UBoot dietro il connettore HDMI
GPIO (non totalmente compatibile con Raspberry Pi – connettore 2X13 pin):
– GPIO,UART,I2C bus,SPI bus with two chip selects,
– CAN bus,ADC,PWM,+3,3 V,+5 V, ground.
LED:
– Alimentazione (Rosso)
– Ethernet (Blu)
– Definito dall’utente (Verde)
Remote: IR
Dimensioni (mm): 92 x 60
Peso: 48 grammi
