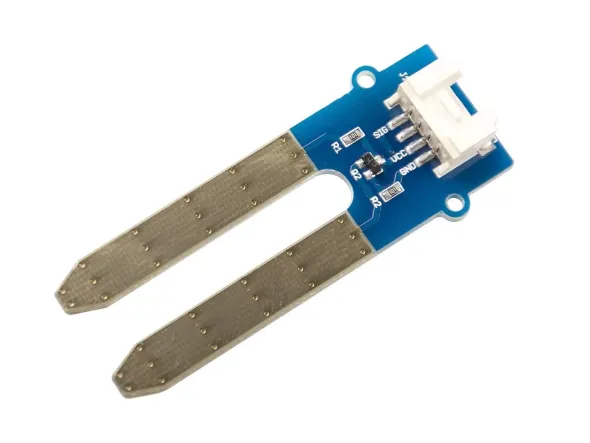

Grove – Moisture Sensor

he Grove – Moisture Sensor can be used to detect the moisture of soil, to judge if there is dampness around the sensor. It can be used to decide if the plants in a garden need watering. It can be used in gardens to automate watering plants. It can be used very easily by just inserting the sensor into the soil and reading the output using ADC.

NOTE: This sensor is not hardened against contamination or exposure of the control circuitry to water and may be prone to electrolytic corrosion across the probes , please use it for PROTOTYPING ONLY.

Technical Details:
Dimensions 60 x 20 x 6.35mm
WeightG.W 10g
Operating voltage3.3~5V
Operating current35mA
Sensor Output Value in dry soil0~ 300
Sensor Output Value in humid soil300~700
Sensor Output Value in water700 ~ 950
PCB size2.0cm X 6.0cm
Operating voltage3.3~5V
Operating current35mA
Sensor Output Value in dry soil0~ 300
Sensor Output Value in humid soil300~700
cable included
BatteryExclude
