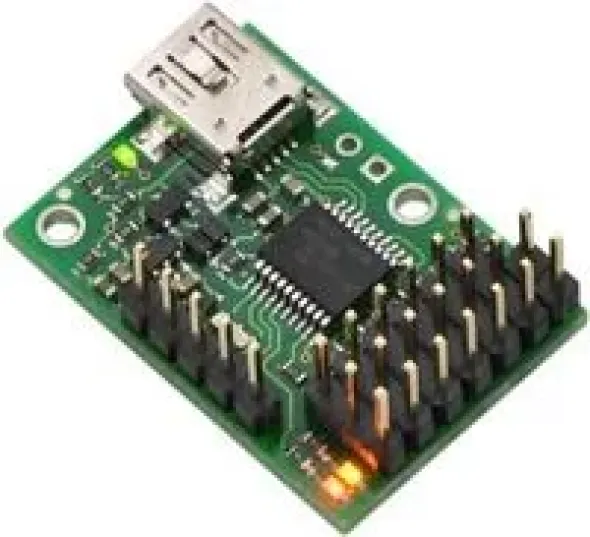

Micro Maestro 6-Channel USB Servo Controller (Assembled)

The six-channel Micro Maestro raises the performance bar for serial servo controllers with features such as a native USB interface and internal scripting control. Whether you want high-performance servo control (0.25µs resolution with built-in speed and acceleration control) or a general I/O controller (e.g. to interface with a sensor or ESC via your USB port), this tiny, versatile device will deliver. The fully assembled version ships with header pins installed.
Dimensions
Size: 0.85″ x 1.20″
Weight: 4.8 g
General specifications
Channels: 6
Baud: 300 – 200000 bps1
Minimum operating voltage: 5 V
Maximum operating voltage: 16 V
Supply current: 30 mA2
Partial kit?: N
Notes:

1 Autodetect works from 300 – 115200 bps.
2 With USB disconnected and all LEDs on. Connecting USB draws around 10 mA more.
