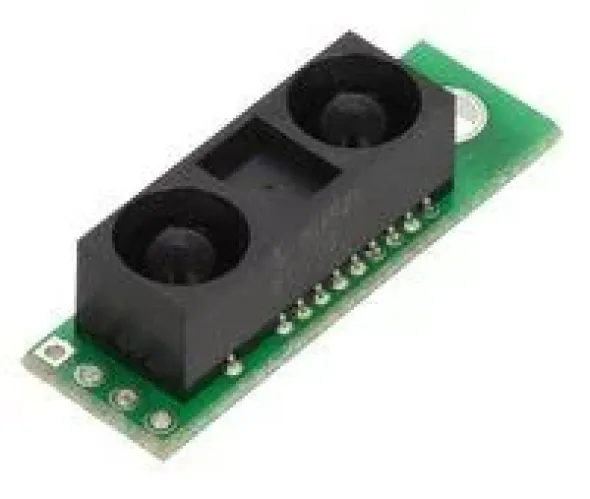

Pololu Carrier with Sharp GP2Y0A60SZLF Analog Distance Sensor 10-150cm, 5V
Descrizione
Dimensions
Size: 1.3? × 0.41? × 0.4?1
Weight: 2.5 g2
General specifications
Maximum range: 150 cm
Minimum range: 10 cm
Sampling rate: 60 Hz3
Minimum operating voltage: 2.7 V
Maximum operating voltage: 5.5 V
Supply current: 33 mA4
Output type: analog voltage
Output voltage differential: 3 V
Notes:
1 Without included optional headers. If the mounting hole is not needed, that part of the board can be cut off to decrease the length by 0.3?.
2 Without included optional headers.
3 Typical; can be as low as 50 Hz.
4 Average; this sensor draws current in large, short bursts.
