Pololu DRV8835 Dual Motor Driver Kit for Raspberry Pi B+

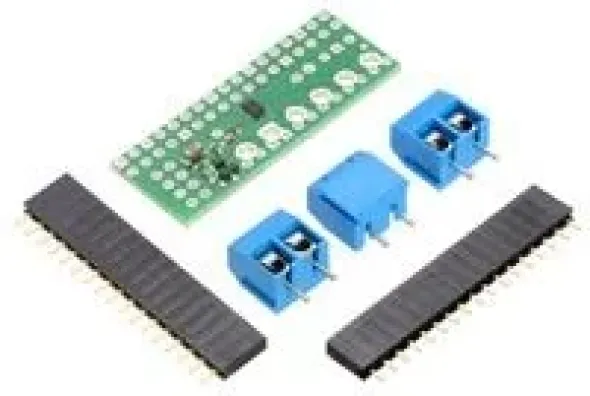

This motor driver kit and its corresponding Python library make it easy to control a pair of bidirectional, brushed DC motors with a Raspberry Pi Model B+. The expansion board features Texas Instruments’ DRV8835 dual H-bridge motor driver IC, which allows it to operate from 1.5 V to 11 V and makes it particularly well suited for driving small, low-voltage motors. The board can deliver a continuous 1.2 A per channel and tolerate peak currents up to 1.5 A per channel for a few seconds, and the channels can be optionally configured to run in parallel to deliver twice the current to a single motor. The board ships fully populated with its SMD components, including the DRV8835 driver and a FET for reverse battery protection; header pins for interfacing with a Raspberry Pi and terminal blocks for connecting motors and power are included but are not soldered in.

Features:

Dual-H-bridge motor driver: can drive two DC motors or one bipolar stepper motor
Motor supply voltage: 1.5 V to 11 V
Logic supply voltage 2 V to 7 V
Output current: 1.2 A continuous (1.5 A peak) per motor
Motor outputs can be paralleled to deliver 2.4 A continuous (3 A peak) to a single motor
PWM operation up to 250 kHz (ultrasonic frequencies allow for quieter motor operation)
Two possible interface modes: PHASE/ENABLE (default – one pin for direction, another for speed) or IN/IN (outputs mostly mirror inputs)
Board can optionally power the Raspberry Pi base directly through add-on regulator (not included)
Python library makes it easy to get started using this board as a motor driver expansion board
GPIO pin mappings can be customized if the default mappings are not convenient
Reverse-voltage protection on motor power supply
Under-voltage lockout and protection against over-current and over-temperature
